Specificaties

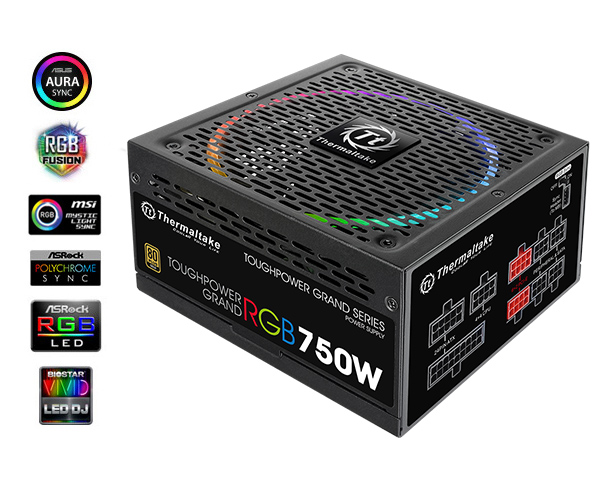

Built to deliver 80 PLUS Gold efficiency, Toughpower Grand RGB Gold (RGB Sync Edition) Series comes with capacities ranging from 650W to 850W. The preinstalled patented 256-color Riing 14 RGB fan allows 5 lighting modes and built-in memory function, and permits more custom RGB lighting possibilities thanks to the light synchronization with enthusiasts’ favorite RGB capable motherboard brands, including ASUS, GIGABYTE, msi, BIOSTAR and ASRock.
Constructed with premium components and ample 10-year warranty, this fully modular member’s near silent operation, trouble free installation and reliable performance have made itself satisfy the market where users are looking for a stylish power supply with advanced features and aesthetic appeal.
Designed to synchronize with ASUS Aura Sync, ASRock RGB LED, BIOSTAR Vivid LED DJ, GIGABYTE RGB Fusion and MSI Mystic Light Sync, the integrated RGB LED ring supports the motherboards that have a 12V RGB header, allowing you to control the lights directly from the above-mentioned software without installing any extra lighting software or controllers. Visit the support page for motherboard information or to download the software:
Simply press the RGB lighting button and enjoy 5 distinctively gorgeous illumination modes: 256-Color RGB Cycle, Solid Red, Green, Blue, White, and a LED Off mode. There is also a built-in memory function to save the color applied and insure the same color selection every time you boot your PC.

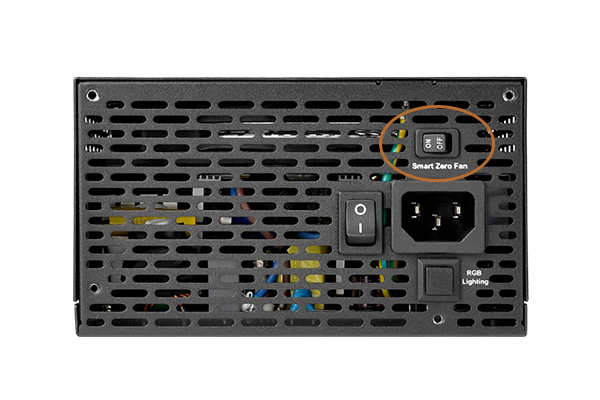

With the RGB Sync switch at the back side, it is easy breezy to shift between software/hardware controlled RGB Lighting. Turn the switch on to experience the ultimate RGB lighting compatibility with ASUS Aura Sync, GIGABYTE RGB Fusion, msi Mystic Light Sync, ASRock RGB LED and BIOSTAR Vivid LED DJ-ready motherboards; turn off for hardware controlled lighting modes.
Toughpower Grand RGB Sync Edition saves energy through its high energy efficiency up to 90% and is certified to 80 PLUS® Gold. The series has been optimized to work with all generations of Intel’s processors to achieve maximum energy saving.

Riing 14 RGB Fan features concentrated compression fan blade to enhance static pressure, hydraulic bearings to guarantee silent operation, and the anti-vibration mounting system to strengthen stability. Its in-mold injection anti-vibration rubber pads provide hassle-free usage with 80% protection coverage for all corners.

With Smart Zero Fan starting to operate when the power supply working load goes over 20%, undesired noise will be minimized. A switch is provided for those who prefer the fan to spin constantly.

Offers cable selection for users while powering the system at an advantageous voltage. Low-profile flat black cable makes cable management easier, reduces clutter and increases airflow inside the chassis.
Specificaties
P/N | PS-TPG-0650FPCGxx-S |
Model | TPG-650AH3FSGR |
Type | ATX 12V v2.4 and EPS v2.92 |
Peak Output Capacity | 780W |
Max. Output Capacity | 650W |
Color | Black |
Dimension ( W / H / D ) | 150mm(W) x 86mm(H) x 160mm(D) |
PFC (Power Factor Correction) | Active PFC |
Power Good Signal | 100-500 msec |
Hold Up Time | > 16msec at 100% of full load |
Input current | 10A |
Input Frequency Range | 50Hz – 60Hz |
Input Voltage | 100V – 240V~ |
Operating Temperature | 0°C to + 50°C |
Operating Humidity | 20% to 90%,non-condensing |
Storage Temperature | -40°C to + 70°C |
Storage Humidity | 20% to 95%, non-condensing |
Cooling System | 14cm hydraulic bearing fan |
Efficiency | Meet 80 PLUS®Gold at 115Vac input. |
MTBF | 120,000 hrs minimum |
Safety Approval | CE/cTUVus/TÜV SÜD/FCC/CCC/BSMI/EAC |
PCI-E 6+2pin | 4 |
Protection | OVP,SCP,OPP,UVP,OTP,OCP |
* Specifications are subject to change without notice.
* The product picture(s) is only for your reference, it may differ from the actual product.
