Specificaties

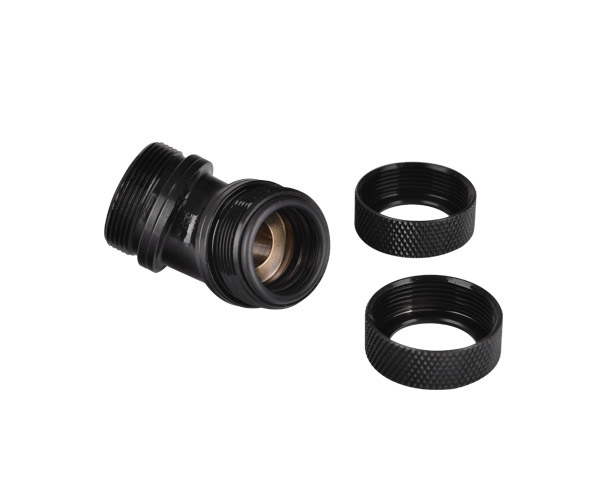

Made in Taiwan, the fittings allow proper connection to G1/4 ports, securing properly to cooling components while providing an even seal around the tubing. The fittings are available in chrome and black finishes, include six preinstalled O-ring. Use PETG tube for all your water cooling needs.
For tubes:
– Outer diameter: 5/8” (16 mm)
- It is strongly recommended to use market proven pre-mix coolant, such as Thermaltake Coolant 1000. It offers great performance while preventing the entire cooling system – copper, brass, nickel, aluminum, and steel – from corrosion.
- Fill the reservoir with coolant and cycle the power on and off several times while the pump pushing the coolant into the loop.
- DO NOT let the pump run dry, when there is no liquid entering the pump turn off your power immediately
- Fill the reservoir to the top as it will prevent air from going into the pump
- If necessary tilt the system slightly from side to side to bleed the air out of the loop.
- Place some paper towels under fittings and joining points to test for leaks.
- Run the loop with the fill port open for about 24 hours to completely bleed the air out of the loop
- Before starting, flush out your system correctly to prevent any coolant or unwanted particles sticking to your tubes, radiators and other cooling components.
- Coolant might fade over time.
Specificaties
P/N | CL-W096-CA00BL-A ( Black ) |
Dimension | 48.2 x 35.1 x 25 (H) (mm) |
Applicable | OD : 16 mm (5/8”) |
Weight | 22 g |
Material | CU |
Screw Thread | G 1/4 |
Note | PETG Tube to G1/4 |
* Specifications are subject to change without notice.
* The product picture(s) is only for your reference, it may differ from the actual product.
