Specificaties
Met de INCA 1G white adapter realiseert u eenvoudig een gigabit internetverbinding over de (bestaande) coaxbekabeling.
GIGABIT INTERNET OVER COAX ADAPTER INCA 1G white shop
For the expansion of the present coax network with High Speed Ethernet up to 1 Gbps. The adapter can be used in combination with routers, gateways, ADSL and cable modems. Supports UHD and 3D video, gaming and High Speed network. The INCA 1G white is plug & play connectable to the existing coax cable. MoCA 2.0 compliant, also downwards compatible with MoCA 1.1. Suited for Smart TV, Blu-rayTMplayer, Xbox®, Playstation®, Apple TV®, DVR, NAS (network storage), desktop, VoIP, Video on Demand, laptop, etc. Manual included.
Included
- ▪ Coax cable; IEC-male to IEC-female
- ▪ CAT 5E UTP cable RJ 45-RJ 45; 75 cm, color white
- ▪ Micro USB cable
- ▪ Manual

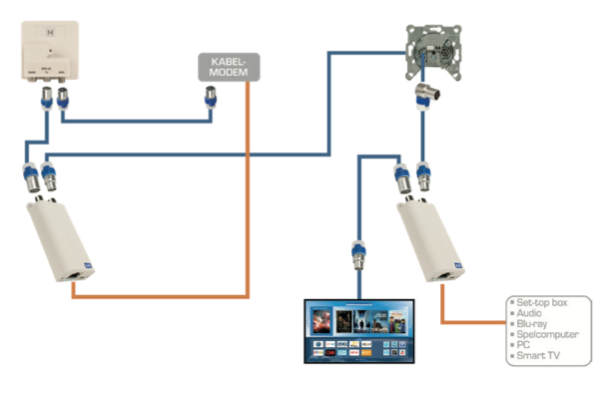

- ▪ Connection diagram
Specificaties
Specifications
Mechanical specifications
Cable Input
Loop through Output Gigabit-Ethernet portDimensions
Electrical specifications
Low pass Insertion loss Return loss High pass Insertion loss Return loss
MoCA Band
Channel bandwidth Throughput (MAC Rate)
MoCA Link Indicator Ethernet Indicator
Main input
Power Consumption
Regulation/Certification
CE Compliant ROHS Compliant
IEC-type, 75 Ohm IEC-type, 75 Ohm
RJ 45
lxbxd 110x46x20 mmmetal housing
5-1250 MHz
1 dB Max.
10 dB Min. 1350-1675 MHz 3 dB Max.
10 dB Min.
D(LOW) or D(EXTD) 50/100 MHz for MoCA 2.0 Up to 1Gbps
blue: MoCA Link
Blinking blue: MoCA active blue: link active
Blinking blue: ethernet activityMicro USB, 5 V DC
<3 W
EMC / LVD
